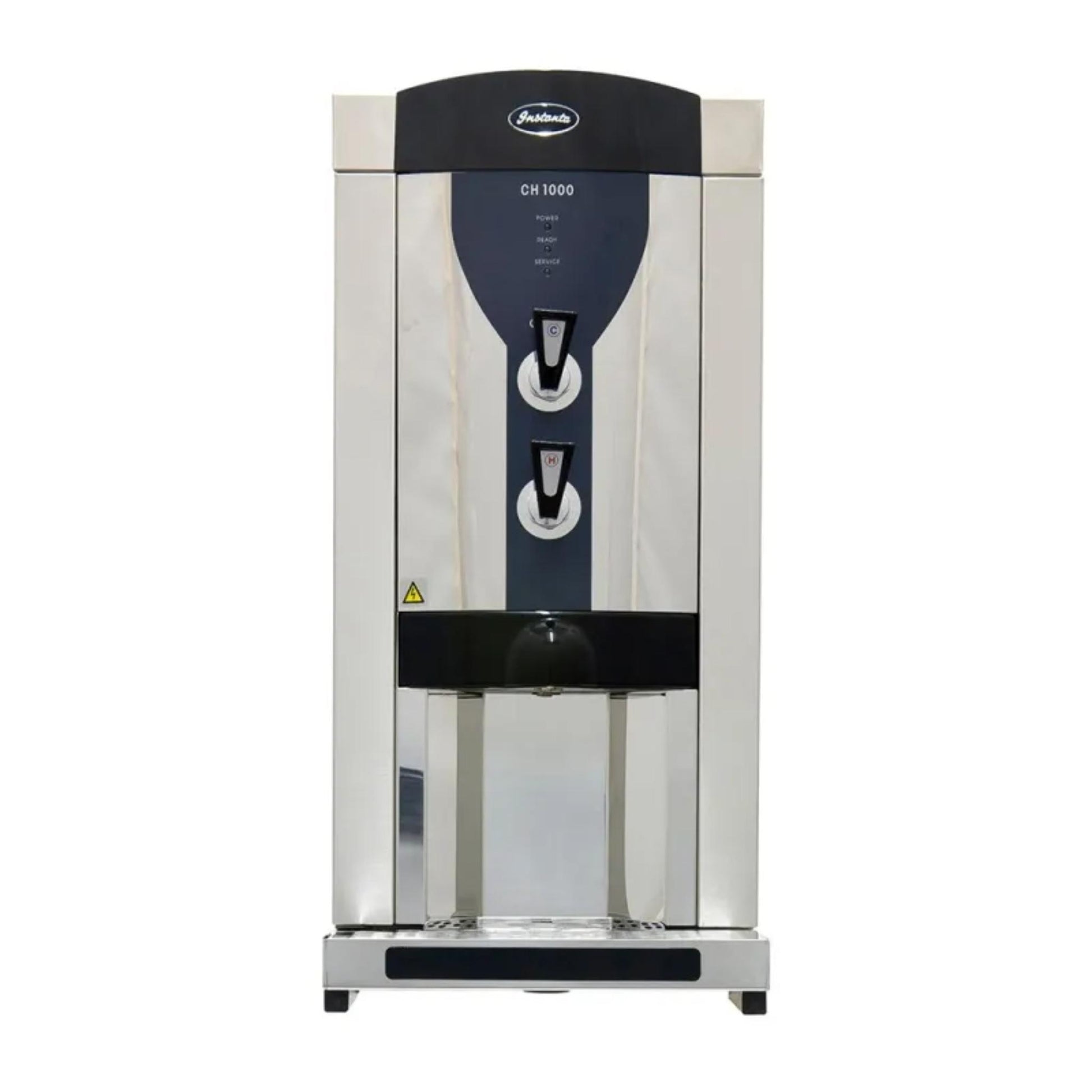

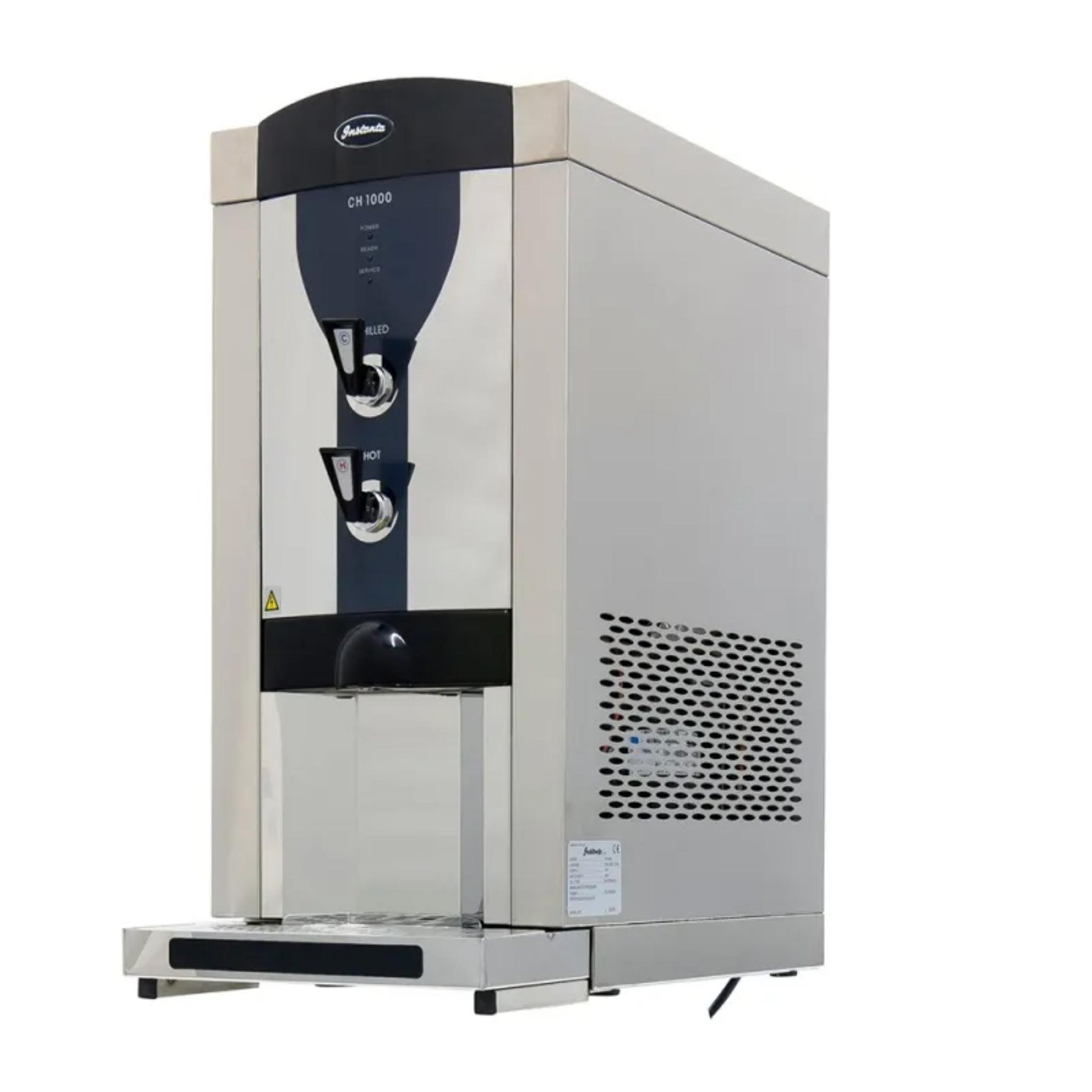

Instanta CTSBC28-10 SureFlow Counter Top Boiling & Chilled Water Dispenser – CH1000

The Instanta CTSBC28-10 SureFlow Counter Top Boiling & Chilled Water Dispenser (CH1000) provides convenient, filtered boiling and chilled drinking water from one compact commercial unit.

Designed for busy offices, workplaces, hospitality environments and commercial kitchens, the SureFlow CH1000 removes the need for separate water boilers and bottled water coolers, providing a practical all-in-one solution for hot drinks and refreshing chilled water.

With an output of 28 litres of boiling water per hour and over 60 cups of chilled water per hour, it is designed to keep up with demanding commercial environments.

Boiling & Chilled Water From One Unit

The Instanta CH1000 combines a commercial water boiler and chiller within a single counter-top system.

It maintains hot water ready for tea, coffee and other hot drinks while simultaneously providing chilled filtered drinking water.

The integrated dispensing arrangement makes it particularly useful for workplaces and hospitality environments looking to provide both hot and cold drinking water without installing two separate appliances.

Key Features

• Boiling and chilled water from one counter-top unit

• 28 litres of boiling water per hour

• Over 60 cups of chilled water per hour

• Chilled water delivered at below 11°C, subject to ambient conditions

• Hot water maintained at approximately 96–97°C

• In-line water filtration for fresh, clean-tasting water

• Easy-to-use non-drip dispensing taps

• Stainless steel construction

• Compact counter-top installation

• Integral drip tray

• 3kW power rating

• Approximately 12-minute heat-up time

• 230V electrical supply

• Supplied with UK 13A plug

• Designed for direct connection to a potable cold water supply

• WRAS approved

• 2-year manufacturer's warranty

Designed for Commercial & Workplace Use

The Instanta SureFlow CTSBC28-10 is an excellent solution where a reliable supply of both boiling and chilled drinking water is required throughout the working day.

Ideal applications include:

• Offices and staff kitchens

• Workplace breakout areas

• Commercial kitchens

• Cafés and restaurants

• Hospitality environments

• Meeting and conference facilities

• Education and public-sector facilities

• Staff canteens

Replacing kettles and bottled water dispensers with a mains-fed system can also help simplify workplace refreshment facilities and reduce the storage and transportation associated with bottled drinking water.

Performance

Boiling water output: 28 litres per hour
Boiling rapid draw-off: 20 cups after initial heat-up
Chilled water output: 60–80 cups per hour
Chilled water temperature: Below 11°C
Heat-up time: Approx. 12 minutes
Recovery rate: 0.5 litres per minute
Power loading: 3kW

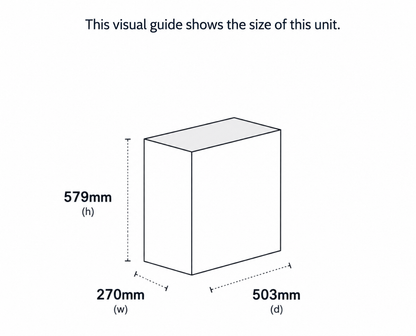

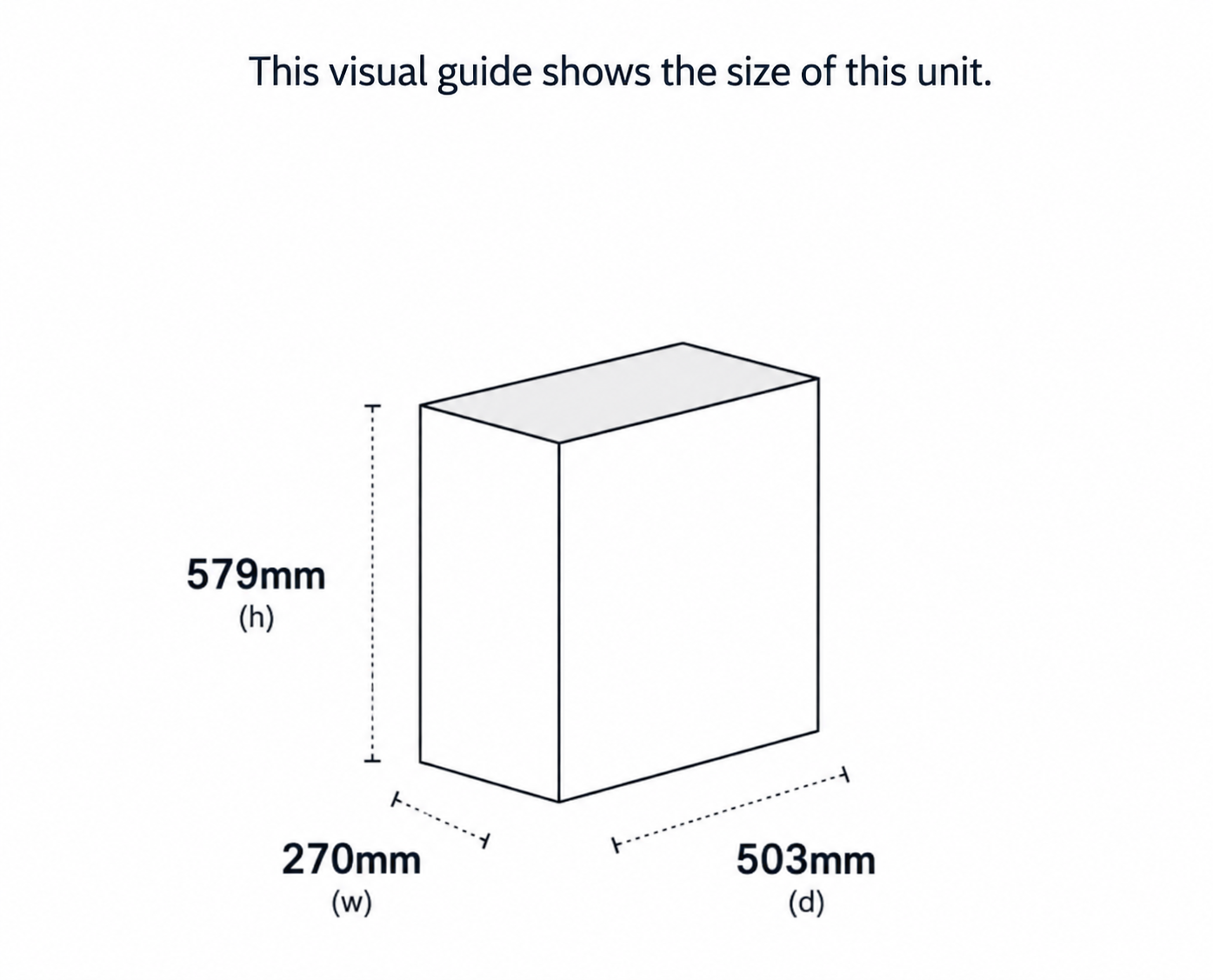

Dimensions & Technical Specification

Model: CTSBC28-10
Alternative model reference: CH1000
Product type: Counter-top boiling and chilled water dispenser
Height: 579mm
Width: 270mm
Depth: 503mm
Rear connection clearance: 45mm
Tap clearance to drip tray: 148mm
Power: 3kW
Electrical supply: 230V, 13A
Water connection: 3/4" BSP
Required mains water pressure: 2–7 bar
Empty weight: Approx. 23.5kg
Full weight: Approx. 30.5kg

Filtered Drinking Water

The CTSBC28-10 uses water filtration to improve drinking water quality by helping remove sediment and chlorine for cleaner, fresher-tasting water.

Filtration also helps reduce limescale, making appropriate filter management particularly important in hard-water areas.

Installation Requirements

The CTSBC28-10 is a counter-mounted, mains-fed appliance and should be positioned on a suitable horizontal work surface in a well-ventilated location.

It requires:

• Potable mains cold water supply

• Water pressure within the specified operating range

• 230V / 13A electrical supply

• Suitable provision for overflow/waste

• Adequate ventilation around the appliance

An isolating valve should be installed between the incoming water supply and the appliance.

Why Choose the Instanta SureFlow CH1000?

The Instanta CTSBC28-10 offers a straightforward way to provide high-volume boiling and chilled filtered water without the footprint and complexity of installing separate commercial appliances.

Its combination of robust stainless steel construction, commercial performance and simple dispensing makes it particularly well suited to busy workplace and hospitality environments.
