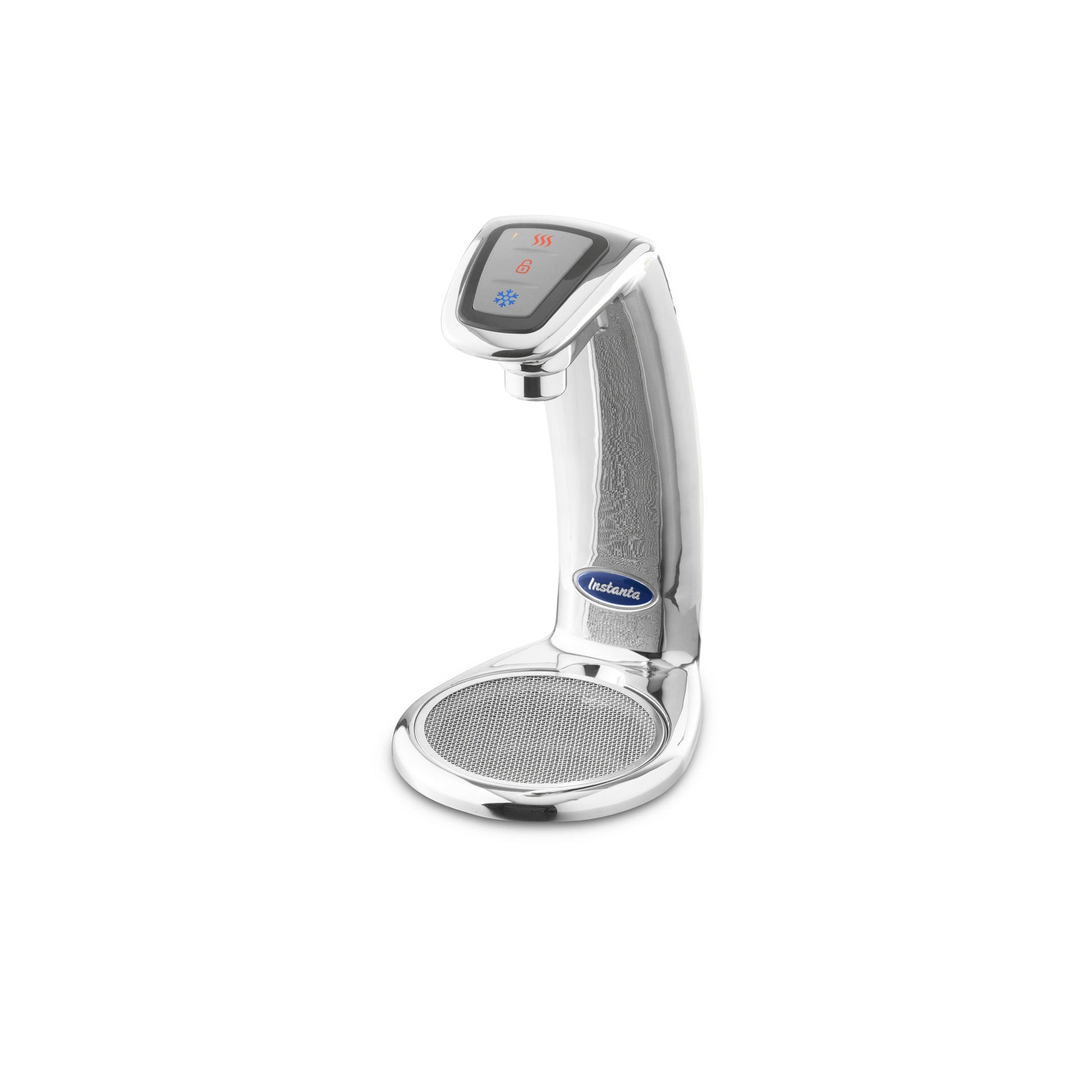

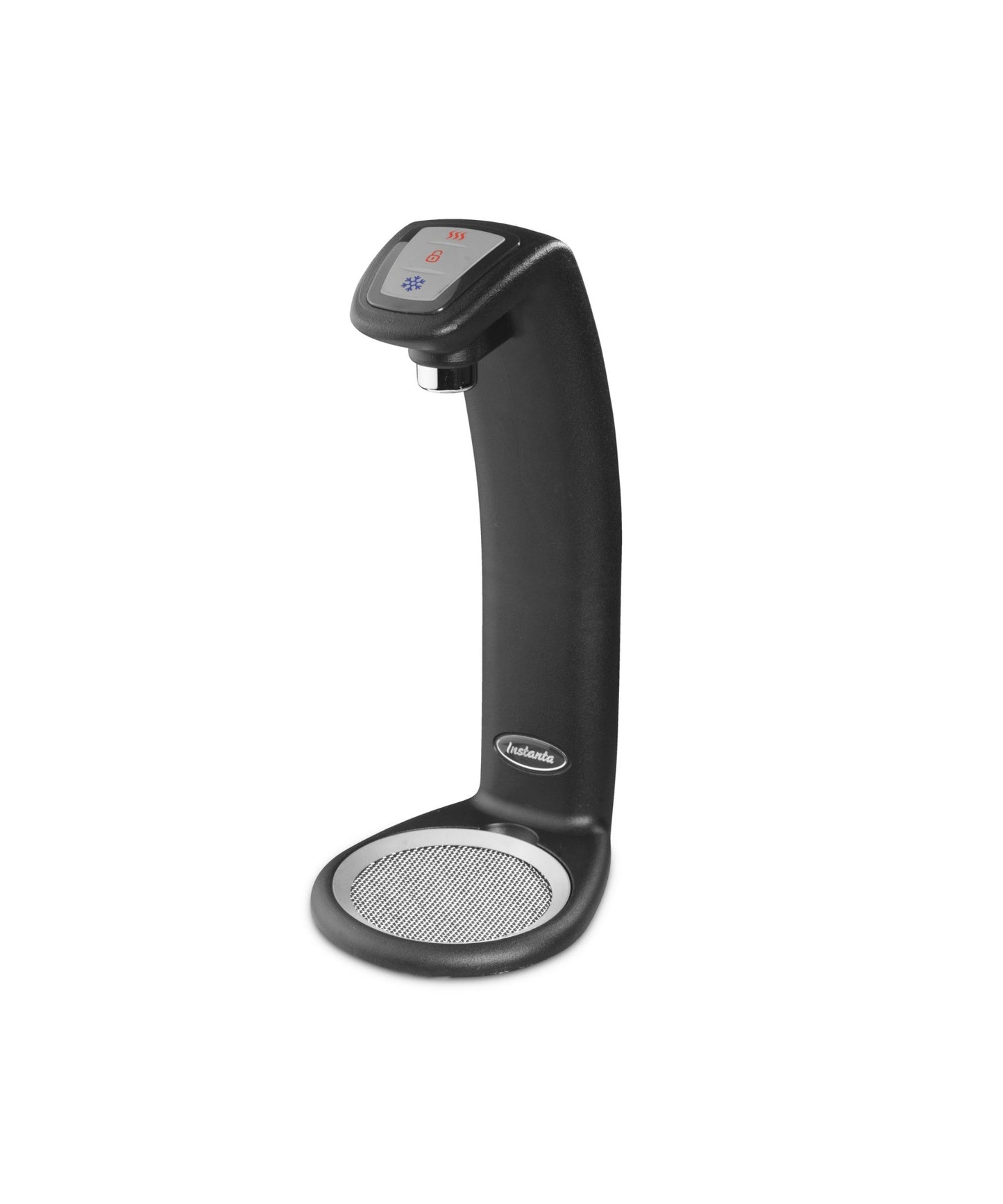

InstaTap G2 Boiling 5 Litre & Chilled 20 Litre High Font Water Tap – Office Use

Instant boiling and refreshing chilled water from one smart system

The InstaTap G2 Boiling & Chilled High Font Water Tap is designed to meet the demands of busy office environments by delivering instant filtered boiling water alongside refreshing chilled water from a single tap. With fast dispense, advanced hygiene protection, and built-in safety features, it helps reduce waiting times while improving workplace convenience and safety.

The illuminated dispense button ensures simple operation, while the antimicrobial additive on the touchpad eliminates 99.99% of bacteria, making it ideal for shared office kitchens and breakout areas.

Key Features and Benefits

Dual Temperature Dispense

• Free pour boiling water dispense

• Free pour chilled water dispense
  Provides flexibility for hot drinks, food preparation, and cold refreshment.

Enhanced Safety

• Integrated boiling water safety lock

• Smooth-flow dispense to minimise spluttering and steam

Superior Hygiene Protection

• Antimicrobial additive on the touchpad

• Kills 99.99% of bacteria for safer shared use

Filtered Water Quality

• Limescale filter included

• Taste and odour filter included
  Ensures cleaner, better-tasting water while helping protect the system.

Consistent Performance

• Electronically controlled temperature up to 96°C

• Automatic re-circulating mode to prevent under-temperature drinks

Smart Diagnostics

• Early warning diagnostics with LCD read-out
  Helps maintain performance and reduce downtime.

Installation and Connectivity

Installation

Easy to install with the font positioned into the work surface and the boiling and chilled command centres sited below. Adequate space must be allowed around the units to ensure sufficient airflow and ventilation.

Electrical

• Boiling command centre fitted with a 1.7 metre cable and 13 amp moulded plug

• Chilled command centre fitted with a 1.4 metre cable and 13 amp moulded plug

Plumbing

Designed for direct connection to a potable cold water supply using the supplied 1.5 metre (¾” BSP) food-grade hose. An isolating valve should be installed between the supply and the machine. Right-hand side water connection.

Technical Specifications

• Model: InstaTap G2 Boiling & Chilled

• Boiling capacity: 5 litres

• Chilled capacity: 20 litres

• Tap font type: High

Boiling Command Centre Dimensions

• Height: 420 mm

• Width: 230 mm

• Depth: 415 mm

Chilled Command Centre Dimensions

• Height: 390 mm

• Width: 180 mm

• Depth: 340 mm

Tap Font Dimensions

• Font width: 150 mm

• Font depth: 197 mm

• Font height: 364 mm

• Required font clearance: 280 mm

Ideal For

• Offices and corporate environments

• Staff kitchens and break rooms

• Shared workplace facilities

• High-demand hot and cold water applications
